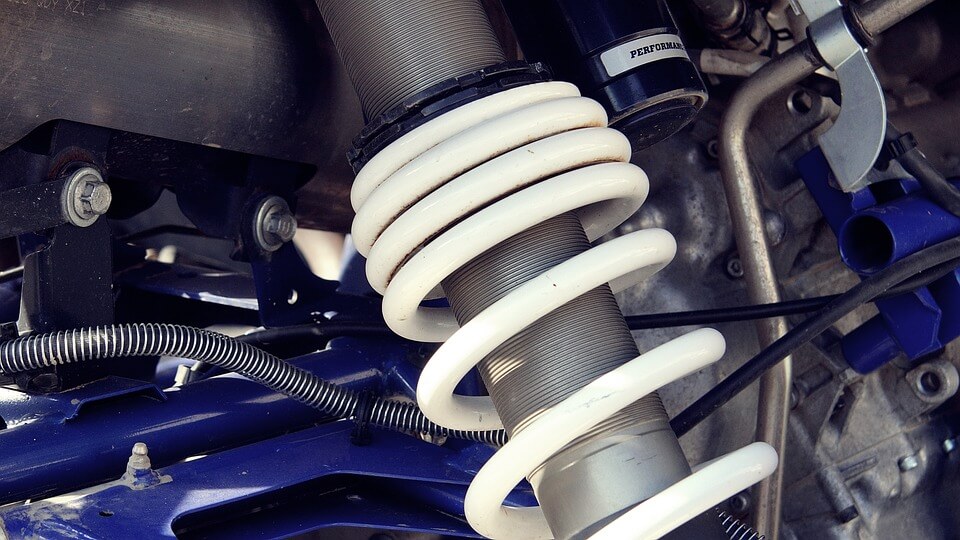

Suspension
Bouncing wheels. Increase in braking distance. ABS and ESP no longer working effectively. Excessive body tilt during acceleration or braking. Excessive body roll during cornering.
? Questions:
Stationary
Uneven tire tread wear pattern, especially flat spots. Oil leaks on shock absorber. Worn or torn dust boot. Loose, worn, cracked, broken, or corroded spring. Push down hard on each corner of the vehicle and release. The vehicle should return to its normal position and stop. If it continues to bounce up and down then it needs professional assessment. Securely use a jack to lift each wheel off the ground. Shimmy or shake the tire back and forth. If there is excessive play: 9 - 3 o'clock: Likely inner/outer tie rods. 12 - 6 o'clock: Likely worn ball joint.
Driving
Unusual noises such as clanking or knocking when driving over bumps. Constant correction or force on the steering wheel to keep the vehicle traveling straight.
? How often should a car's suspension be inspected and serviced?
Regular Inspection
Annually: It is recommended to have your car's suspension system inspected at least once a year during a routine maintenance check. Every 12,000 to 15,000 Miles: For vehicles that accumulate high mileage, a suspension check every 12,000 to 15,000 miles is advisable.
Signs of Issues
Immediate Inspection: If you notice any signs of suspension problems, such as excessive bouncing, uneven tire wear, knocking noises, drifting or pulling to one side, or a rough ride, you should have your suspension system inspected immediately.
Service Intervals
Shock Absorbers and Struts: These components generally last between 50,000 and 100,000 miles, depending on driving conditions and vehicle use. They should be inspected regularly and replaced if they show signs of wear. Control Arms and Bushings: These components should be inspected during routine maintenance and replaced if they show signs of wear or damage. Springs: Coil springs and leaf springs should be inspected regularly for cracks, breaks, or sagging and replaced if necessary. Wheel Alignment : Regular wheel alignment checks and adjustments help ensure the suspension system functions correctly and can prevent uneven tire wear.
Factors Affecting Inspection Frequency
Driving Conditions: If you frequently drive on rough or unpaved roads, your suspension system may require more frequent inspections and maintenance. Vehicle Usage: Vehicles used for heavy-duty tasks or carrying heavy loads may experience more wear and tear on the suspension system and should be inspected more often.
? How do I know if my suspension needs repair?
Visual Inspection
Uneven Tire Wear: Check for uneven or excessive tire wear, which can indicate alignment issues or worn suspension components. Leaking Fluid: Inspect shock absorbers and struts for any signs of fluid leaks. Sagging: Noticeable sagging or lower stance on one side of the vehicle can indicate spring or shock absorber issues.
Performance Symptoms
Excessive Bouncing: If the vehicle bounces excessively after hitting a bump, the shock absorbers or struts may be worn out. Rough Ride: A noticeably rougher ride than usual can indicate problems with the suspension. Nose Diving: The front of the car dips more than usual when braking, indicating worn shocks or struts. Drifting or Pulling: The vehicle pulls to one side while driving, which may indicate alignment issues or worn suspension components. Knocking or Clunking Noises: Unusual noises from the suspension system when driving over bumps or rough roads can signal worn or damaged components. Steering Issues: Difficulty steering or a steering wheel that feels loose or stiff can indicate suspension problems.
Testing
Bounce Test: Push down on the front or rear of the car and release. If the vehicle continues to bounce more than 2-3 times, the shocks or struts may be worn. Visual Check of Components: Inspect the suspension components like control arms, bushings, ball joints, and sway bar links for visible damage or wear.
Professional Inspection
Routine Maintenance Checks: Have a mechanic inspect the suspension system during routine maintenance or oil changes. Comprehensive Inspection: If you suspect an issue or experience any of the above symptoms, have a professional mechanic perform a comprehensive suspension inspection.
Early Detection
? What causes suspension problems?
Normal Usage: Over time, suspension components like shocks, struts, springs, and bushings naturally wear out and lose their effectiveness. High Mileage: Vehicles with high mileage are more prone to suspension issues due to the extensive use of suspension components.
Rough Roads: Driving on rough, unpaved, or pothole-ridden roads can cause significant stress and damage to the suspension system. Speed Bumps: Frequently driving over speed bumps at high speeds can wear out or damage the suspension components.
Heavy Loads: Regularly carrying heavy loads or towing can strain the suspension system, leading to premature wear and damage. Aggressive Driving: Frequent hard braking, sharp turns, and fast driving can put extra stress on the suspension components.
Corrosion: Exposure to road salt, water, and other corrosive elements can lead to rust and deterioration of suspension components. Temperature Extremes: Extreme hot or cold temperatures can affect the performance and lifespan of suspension components.
Faulty Parts: Occasionally, suspension issues may arise from manufacturing defects or poor-quality components.
Neglecting Regular Inspections: Failing to perform regular inspections and maintenance can allow minor issues to develop into major problems. Ignoring Symptoms: Ignoring early warning signs like unusual noises, uneven tire wear, or a rough ride can lead to more significant suspension issues.
Incorrect Installation: Suspension problems can occur if components are not installed correctly or if improper repair techniques are used. Mismatched Parts: Using incompatible or low-quality replacement parts can cause suspension issues.
Misalignment: Poor wheel alignment can lead to uneven tire wear and increased stress on suspension components, causing premature wear.
Preventive Measures
Regular Inspections: Regularly inspect the suspension system during routine maintenance checks. Address Issues Promptly: Address any signs of suspension problems immediately to prevent further damage. Proper Maintenance: Follow the manufacturer’s recommended maintenance schedule for your vehicle’s suspension system.
? Can driving with a bad suspension damage my car?
Uneven Tire Wear: A damaged suspension can cause uneven tire wear, reducing the lifespan of your tires and leading to frequent replacements. Bald Spots: Irregularities in the suspension can lead to bald spots on tires, increasing the risk of blowouts.
Misalignment: A faulty suspension can cause the wheels to become misaligned, leading to steering problems and further tire wear. Steering Difficulty: Misalignment can make it harder to steer the vehicle, compromising your control over the car.
Poor Handling: A bad suspension affects the vehicle's handling, making it less responsive to steering inputs and increasing the risk of accidents. Stability Issues: The car may become unstable, especially when cornering or driving at high speeds.
Brakes : A compromised suspension can put additional stress on the braking system, reducing its effectiveness and increasing wear. Chassis Damage: Continuous driving with a bad suspension can lead to damage to the chassis and frame of the vehicle.
Uncomfortable Ride: A damaged suspension results in a rough and uncomfortable ride, making long drives particularly unpleasant. Safety Risks: Poor suspension can compromise the safety of the vehicle, increasing the likelihood of accidents , especially in emergency situations.
Exhaust System: The exhaust system can be damaged by the vehicle's excessive bouncing and uneven ride. Body Damage: The vehicle’s body and undercarriage can suffer damage from impacts with the road due to a faulty suspension.
Increased Drag: A bad suspension can increase the vehicle's drag, leading to decreased fuel efficiency.
Preventive Measures
Regular Inspections: Have your suspension system inspected regularly by a professional mechanic. Address Issues Promptly: If you notice any signs of suspension problems, such as unusual noises, uneven tire wear, or a rough ride, address them immediately. Proper Maintenance: Follow the manufacturer’s recommended maintenance schedule for your vehicle’s suspension system.
? Is it safe to drive with a bad suspension?
Handling Issues: A bad suspension affects your ability to control the vehicle, especially when turning or navigating curves. Steering Difficulties: Steering can become unpredictable and harder to manage, increasing the likelihood of an accident.
Braking Efficiency: A compromised suspension can negatively impact your car's braking system, leading to increased stopping distances. Brake Wear: Additional stress on the brakes can cause them to wear out faster, reducing their effectiveness.
Uneven Wear: A faulty suspension leads to uneven tire wear, which can cause blowouts or tire failure while driving. Alignment Problems: Misalignment caused by suspension issues can make the car pull to one side, making it harder to drive straight.
Uncomfortable Ride: A bad suspension makes for an uncomfortable and bumpy ride, which can be particularly taxing on longer trips. Increased Fatigue: The discomfort can lead to driver fatigue, reducing reaction times and increasing the risk of an accident.
Additional Component Stress: Driving with a bad suspension can cause further damage to other vehicle components, including the chassis, exhaust system, and brakes. Body and Frame Damage: The continuous jarring and bouncing can lead to damage to the vehicle's body and frame.
Poor Stability: A compromised suspension can cause the vehicle to become unstable, especially at higher speeds or on uneven roads. Emergency Maneuvering: In emergency situations, a bad suspension can hinder your ability to make quick, safe maneuvers.
Signs of a Bad Suspension
Unusual Noises: Clunking or knocking sounds when driving over bumps. Rough Ride: Excessive bouncing or a rough ride, even on smooth roads. Uneven Tire Wear: Noticeable uneven wear on tires. Leaning: The vehicle leans to one side or nose-dives when braking. Fluid Leaks: Leaking fluid from shock absorbers or struts.
What to Do if You Suspect a Bad Suspension
Get an Inspection: Have a professional mechanic inspect your suspension system as soon as possible. Avoid Long Drives: Minimize driving, especially long distances, until the suspension is repaired. Drive Cautiously: If you must drive, do so cautiously, avoiding high speeds and rough roads.
Conclusion
? How does suspension affect vehicle handling?
Stability and Control
Body Roll: The suspension system helps manage body roll (the tilting of the vehicle to one side) during cornering. A well-tuned suspension minimizes excessive body roll, keeping the vehicle more stable and improving control. Anti-Roll Bars (Sway Bars): These components connect the left and right sides of the suspension and reduce body roll, enhancing stability during turns.
Traction
Tire Contact: The suspension keeps the tires in consistent contact with the road, even on uneven surfaces. Good traction ensures the vehicle can accelerate, brake, and corner effectively without losing grip. Shock Absorbers/Struts: These components dampen the movement of the springs, preventing the vehicle from bouncing excessively. This helps maintain tire contact with the road, which is essential for good handling.
Ride Quality vs. Handling Balance
Spring Rates: The stiffness or softness of the springs affects handling. Stiffer springs reduce body roll and improve handling but may result in a rougher ride. Softer springs offer a smoother ride but can lead to more body roll and less precise handling. Damping Rates: The rate at which the shock absorbers or struts absorb road impacts also influences handling. High-performance vehicles often have adjustable damping to fine-tune the balance between ride comfort and handling precision.
Understeer and Oversteer
Understeer : This occurs when the front wheels lose grip, causing the vehicle to turn less sharply than intended. Suspension tuning can influence understeer, particularly in front-wheel-drive vehicles. Oversteer : This happens when the rear wheels lose grip, causing the vehicle to turn more sharply than intended. Rear-wheel-drive vehicles are more prone to oversteer, and the suspension setup can help mitigate or enhance this characteristic.
Cornering Ability
Camber Angle: The tilt of the wheels relative to the road surface, known as camber, affects how the tires grip during cornering. Negative camber (tilting the top of the wheels inward) can improve grip during turns. Toe and Caster Angles: These alignment settings affect how the vehicle handles during cornering. Proper alignment ensures that the wheels are pointed in the optimal direction for maximum stability and responsiveness.
Weight Transfer
Acceleration and Braking: During acceleration, the suspension helps manage weight transfer to the rear wheels, enhancing grip and preventing wheel spin. During braking, the suspension controls weight transfer to the front wheels, improving stability and reducing the risk of losing control. Cornering: The suspension system also manages lateral weight transfer during cornering, helping to keep the vehicle balanced and preventing excessive lean or loss of traction.
Impact of Suspension Tuning
Sport-Tuned Suspension: Vehicles with sport-tuned suspensions have stiffer components that prioritize handling and performance, offering sharper steering response and reduced body roll. Comfort-Oriented Suspension: These setups focus on providing a smooth and comfortable ride, which may result in less precise handling, especially during aggressive driving.
? How do bad shocks affect braking distance?
Reduced Tire Contact with the Road
Bounce and Instability: When shocks are worn out, they can't effectively dampen the movement of the vehicle's springs, leading to excessive bouncing. This means the tires may momentarily lose contact with the road, especially over bumps or uneven surfaces. Reduced Traction: If the tires are not consistently in contact with the road, the traction is reduced. Less traction means that the tires are less able to grip the road during braking, increasing the distance required to stop.
Increased Braking Distance
Longer Stopping Distance: With bad shocks, the vehicle's ability to stop quickly is compromised. The tires may skip or hop on the road surface, leading to a longer stopping distance because the brakes can't fully engage with the road. Skidding Risk: Poor shock absorption can cause the vehicle to skid, particularly in wet or slippery conditions, further increasing the braking distance and the risk of an accident.
Uneven Braking
Weight Transfer: During braking, a vehicle naturally transfers weight to the front wheels. Bad shocks can cause this weight transfer to be uneven, leading to unstable braking, where one side of the vehicle may dip more than the other. This can cause the vehicle to pull to one side, making it harder to control and increasing the braking distance.
Increased Wear on Other Components
Brake Wear: Bad shocks can also lead to increased wear on the brake pads and rotors, as the brakes may have to work harder to compensate for the lack of traction. This not only affects braking efficiency but can also lead to more expensive repairs over time.
Impact on Anti-lock Braking System (ABS)
ABS Effectiveness: In vehicles equipped with ABS, bad shocks can interfere with the system's ability to prevent wheel lockup. The ABS relies on the tires maintaining good contact with the road to function correctly. If the shocks are worn out, the ABS might not be able to stop the vehicle as quickly or safely.
Conclusion
? How does suspension affect tire wear?
Alignment Issues
These alignment angles are directly influenced by the suspension system. If any of these angles are out of specification, it can lead to uneven tire wear: Camber: If the wheels tilt inward (negative camber) or outward (positive camber) too much, the tire tread will wear unevenly, typically on one edge. Toe: Incorrect toe alignment (wheels pointing too much inward or outward) causes tires to scrub against the road, leading to feathering or scalloping of the tread. Caster: While caster angle primarily affects steering stability, misalignment can indirectly contribute to uneven tire wear by affecting the camber and toe angles.
Worn Suspension Components
Shock Absorbers and Struts: These components help keep the tires in constant contact with the road. If they are worn out, the tires may bounce excessively, leading to cupping or scalloping wear patterns on the tire tread. This is because the tire loses contact with the road and then slams back down, causing irregular wear. Bushings and Ball Joints: These parts help maintain proper wheel alignment. If they wear out, they can allow the wheels to move out of alignment, leading to uneven tire wear.
Weight Distribution
Uneven Load: A faulty suspension system can lead to uneven weight distribution across the tires. If one side of the suspension is sagging, more weight may be placed on one tire, causing it to wear out faster than the others. Body Roll: Excessive body roll due to worn suspension can cause the tires on the outer side of a turn to bear more load, leading to increased wear on those tires.
Impact on Tire Contact Patch
Reduced Tire Contact: If the suspension isn’t functioning properly, the tires might not maintain optimal contact with the road surface. This can lead to irregular tire wear patterns, as certain parts of the tire tread wear down faster than others.
Vibration and Tire Damage
Increased Vibrations: Worn suspension components can cause vibrations that lead to uneven tire wear. For example, a bad shock absorber can cause the tire to bounce, leading to a wavy or scalloped tread pattern. Potential Tire Damage: Over time, these vibrations can also cause the tire to develop weak spots, leading to potential blowouts or other tire failures.
Driving Conditions and Suspension Load
Heavy Loads: If your vehicle regularly carries heavy loads, the suspension system can be put under extra stress. This can lead to premature wear of suspension components, which in turn causes uneven tire wear. Off-Road Driving: Driving on rough terrain can also accelerate wear on the suspension system, leading to alignment issues and uneven tire wear.
Conclusion
? What are the differences between independent and dependent suspension systems?
Design and Functionality
Design: In an independent suspension system, each wheel on the same axle moves independently of the other. This means that when one wheel encounters a bump or dip in the road, it does not directly affect the other wheel on the same axle. Components: Common independent suspension systems include MacPherson struts, double wishbones, and multi-link setups. Functionality: Provides better ride comfort and handling because the movement of one wheel does not influence the other. This allows for improved traction and stability, especially on uneven surfaces.
Design: In a dependent suspension system, also known as a solid axle or live axle, both wheels on the same axle are connected and move together as a unit. If one wheel encounters a bump, the movement is transferred to the other wheel on the same axle. Components: The most common form of dependent suspension is the solid axle setup, where a rigid beam connects both wheels. Functionality: This type of suspension is simpler and more robust, making it ideal for heavy-duty applications like trucks and off-road vehicles. However, it can result in a rougher ride and less precise handling compared to independent suspension.
Ride Comfort and Handling
Ride Comfort: Offers a smoother and more comfortable ride, especially on uneven or bumpy roads. Each wheel's ability to move independently allows the suspension to better absorb road imperfections. Handling: Provides superior handling and stability, particularly in cornering, because the wheels maintain better contact with the road.
Ride Comfort: Tends to provide a firmer ride, as the movement of one wheel affects the other. This can result in less comfort, especially on rough roads. Handling: Handling can be less precise because the wheels are not independent. In turns, the rigid connection can cause body roll and reduced traction.
Application and Use
Typical Use: Commonly found in passenger cars, SUVs, and sports vehicles where ride comfort and handling are prioritized. Advantages: Better suited for vehicles that require a balance between comfort and performance. It allows for more precise control of each wheel, enhancing overall driving dynamics.
Typical Use: Often used in heavy-duty vehicles, trucks, and off-road vehicles where durability and load-bearing capacity are important. Advantages: Stronger and more durable, making it ideal for vehicles that carry heavy loads or are used in tough driving conditions. It is also simpler and generally cheaper to manufacture and maintain.
Cost and Maintenance
Cost: Typically more expensive due to the complexity of the design and the need for more components like control arms, ball joints, and more intricate linkages. Maintenance: More complex, which can lead to higher maintenance costs over time. However, the components tend to provide better performance.
Cost: Generally less expensive to produce and maintain because of the simpler design with fewer moving parts. Maintenance: Easier and cheaper to maintain, with fewer parts that can wear out or require adjustment.
Performance
Performance: Offers better overall performance for on-road driving, including superior comfort, stability, and control. Adaptability: More adaptable to different road conditions and driving styles, making it the preferred choice for a wide range of vehicles.
Performance: Better suited for off-road and heavy-duty applications where durability and the ability to handle rough terrain are more important than comfort and precision. Strength: Provides greater strength and durability for carrying heavy loads and enduring tough driving conditions.
Summary
Independent Suspension : Offers superior ride comfort, handling, and performance for on-road vehicles, but at a higher cost and with more complex maintenance requirements. Dependent Suspension : Provides durability, simplicity, and cost-effectiveness, making it ideal for heavy-duty and off-road vehicles, though at the expense of ride comfort and handling precision.
? What is an anti-roll bar, and what does it do?
Design and Structure
Shape and Placement: An anti-roll bar is a long, tubular piece of metal, typically shaped like a "U" or a straight bar with arms at each end. It is mounted transversely across the vehicle, connecting the left and right sides of the suspension, usually through links and bushings. Connection: The bar is attached to the suspension components on both sides of the vehicle, either to the control arms or directly to the chassis, depending on the design.
How It Works
When a vehicle goes around a corner, centrifugal force causes the body of the vehicle to lean away from the direction of the turn. This leaning effect is known as body roll. As one side of the suspension compresses (the side on the outside of the turn) and the other side extends (the side on the inside of the turn), the anti-roll bar resists this difference in suspension movement. The bar twists slightly as it transfers some of the force from the more compressed side to the less compressed side, thereby reducing the amount of roll.
When driving over uneven surfaces, one wheel may move up or down more than the other. The anti-roll bar helps to balance this movement by providing resistance, reducing the difference in wheel movement and keeping the vehicle more level.
Benefits and Importance
Improved Handling: The anti-roll bar helps to keep the vehicle's body flatter during cornering, which improves handling and stability. This is especially important for maintaining control during sharp turns or sudden maneuvers. Enhanced Safety: By reducing body roll, the anti-roll bar contributes to better traction. The tires remain more evenly loaded, which can help prevent situations like oversteer or understeer, thereby enhancing safety. Comfort: It also helps in maintaining a more comfortable ride by minimizing the side-to-side motion of the vehicle when driving over uneven terrain or during sharp maneuvers.
Limitations
Stiffness vs. Comfort: While an anti-roll bar improves handling, it can also make the ride stiffer. A very stiff anti-roll bar might reduce body roll effectively but could compromise ride comfort, particularly over bumpy roads. Impact on Independent Suspension: In vehicles with independent suspension, the anti-roll bar can limit the independence of the suspension movement, which might reduce the benefits of an independent setup in terms of ride comfort.
Types of Anti-Roll Bars
Solid Bars: These are the most common type and are made from a solid piece of metal. They are durable and effective but can add weight to the vehicle. Hollow Bars: These are lighter than solid bars but can be made to offer similar levels of stiffness. They are often used in performance vehicles where weight savings are important. Adjustable Bars: Some performance vehicles come with adjustable anti-roll bars, allowing the driver or mechanic to fine-tune the stiffness of the bar to suit different driving conditions.
