Barrier
💡 Tips:
🛈 Info:
? Questions:
💡 Tips related to lane barriers
Tips for Drivers:
Head on: Never connect head-on into the end of a barrier (as shown in the accompanying picture) as the metal sheet could penetrate the cab of the vehicle. Newer barriers curly the metal sheet away from the vehicle, however we don't want to take a chance. Watch for Signs : Pay attention to road signs indicating upcoming lane barriers or changes in traffic patterns. Avoid Distractions : Keep your focus on the road, especially in areas with lane barriers where the driving conditions can be more challenging.
Stay in Your Lane : Adhere to lane markings and avoid drifting into adjacent lanes, especially in areas with barriers. Use Turn Signals : Signal well in advance before changing lanes to inform other drivers of your intentions.
Adjust Speed : Slow down when approaching and navigating through areas with lane barriers, especially in construction zones or areas with sharp curves. Observe Speed Limits : Follow posted speed limits, which are often reduced in areas with lane barriers.
Avoid Tailgating : Maintain a safe following distance from the vehicle in front of you to allow for sudden stops or changes in traffic flow. Space Cushion : Ensure there’s enough space between your vehicle and the lane barriers to avoid accidental collisions.
Signal Early : Use your turn signal at least 100-200 feet before merging. Check Blind Spots : Always check your mirrors and blind spots before merging to avoid cutting off other drivers.
Follow Temporary Signs : Adhere to temporary signs and barriers set up in construction zones for your safety and that of the workers. Be Patient : Expect delays and be patient with traffic flow changes in construction areas.
Tips for Pedestrians and Cyclists:
Sidewalks and Bike Lanes : Stay within designated pedestrian paths and bike lanes, especially where barriers separate these from vehicular traffic. Cross at Intersections : Use crosswalks and signal-controlled intersections to cross roads safely.
Wear Bright Clothing : Increase your visibility to drivers by wearing bright or reflective clothing, especially in low-light conditions. Use Lights at Night : Cyclists should use front and rear lights when riding at night or in poor visibility conditions.
Avoid Distractions : Stay alert and avoid using devices that can distract you from noticing traffic changes and barriers. Listen for Traffic : Be aware of your surroundings, especially in areas with heavy traffic or construction zones.
Tips for Road Authorities and Construction Workers:
Ensure Stability : Barriers should be securely installed to prevent them from becoming hazards themselves. Clear Signage : Provide clear and visible signage well before the start of the barrier to inform drivers of upcoming changes.
Inspect Barriers : Regularly inspect barriers for damage or displacement and repair or replace them as needed. Clean and Maintain : Keep barriers free from debris, graffiti, and other obstructions that could reduce their visibility and effectiveness.
Enhance Visibility : Use reflective tape or paint on barriers to make them more visible at night and in low-light conditions. Flashing Lights : Consider adding flashing lights to barriers in high-risk areas to increase visibility.
Detours and Alternate Routes : Clearly mark detours and alternate routes around barriers, especially in construction zones. Advance Notice : Provide advance notice to drivers about upcoming barriers and changes in traffic patterns through signs and public announcements.

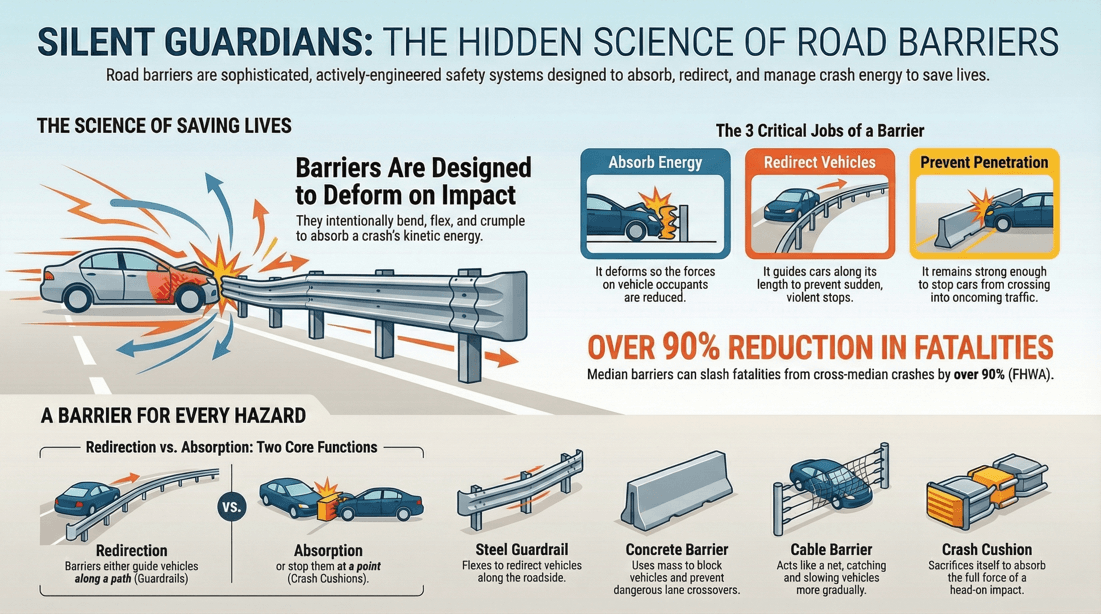

🛈 How crash barriers work
Mechanism of Crash Barriers:
Deformation: Crash barriers are engineered to deform upon impact, which helps absorb the kinetic energy of the colliding vehicle. This deformation reduces the force experienced by the occupants, thereby minimizing injuries. Energy Dissipation: Materials used in barriers, such as steel, concrete, or cable, are chosen for their ability to dissipate energy effectively.
Controlled Redirection: Rather than stopping a vehicle abruptly, many crash barriers are designed to redirect the vehicle back onto the road. This controlled redirection prevents the vehicle from crossing into oncoming traffic or veering off the roadway into hazardous areas. Angle of Impact: Barriers are angled or curved in such a way that they guide the vehicle along the barrier's length, reducing the risk of a head-on collision.
Structural Integrity: Crash barriers are constructed to prevent vehicles from penetrating through them. This is crucial for preventing vehicles from crossing medians into opposing traffic lanes or falling off elevated roadways. Multi-Layer Design: Some barriers, such as cable barriers, use multiple layers (cables, posts) to enhance their stopping power.
Types of Crash Barriers and Their Functionality:
Material: Typically made of steel or a combination of steel and wood. Mechanism: The guardrail absorbs impact energy by bending and flexing. The posts and rails work together to redirect the vehicle along the barrier. Application: Used along road shoulders and medians to prevent vehicles from leaving the roadway.
Material: Reinforced concrete. Mechanism: These barriers provide a rigid barrier that can stop or redirect vehicles. They are effective in preventing crossover accidents. Application: Used on highways, bridge approaches, and in construction zones.
Material: Steel cables mounted on posts. Mechanism: The cables flex and stretch upon impact, absorbing energy and slowing down the vehicle. The tension in the cables helps to redirect the vehicle. Application: Often used in medians to prevent cross-median accidents.
Material: Various materials, including metal, plastic, and foam. Mechanism: These devices are designed to crush or deform in a controlled manner, absorbing the vehicle's kinetic energy and bringing it to a stop gradually. Application: Placed at the ends of barriers, bridge piers, and other fixed objects.
Material: High-density polyethylene filled with water or sand. Mechanism: The water or sand inside the barrier absorbs impact energy. These barriers can be easily moved and reconfigured. Application: Used in temporary setups such as construction zones and special events.
Factors Influencing the Effectiveness of Crash Barriers:
Installation and Maintenance: Proper installation is critical to ensure barriers perform as designed. Regular maintenance is necessary to address damage and wear. Speed and Angle of Impact: The effectiveness of a crash barrier depends on the speed and angle at which a vehicle impacts it. Barriers are designed to perform optimally within specific ranges of these factors. Vehicle Type: Different barriers may perform differently depending on the type of vehicle (e.g., passenger car vs. heavy truck). Barriers are often tested for various vehicle types to ensure comprehensive safety.
Benefits of Crash Barriers:
Improved Safety: Reduces the severity of accidents and protects vehicle occupants. Traffic Management: Helps manage traffic flow and prevent vehicles from entering restricted areas. Infrastructure Protection: Prevents damage to road infrastructure and roadside objects.
🛈 How road barriers stopped killing drivers
Improved Barrier Design: Road barriers have evolved to incorporate improved materials and designs that can absorb impact energy and redirect vehicles away from hazardous areas. For example, the introduction of energy-absorbing guardrail end terminals and breakaway posts has significantly reduced the severity of crashes. Wider Installation: Road authorities have expanded the installation of road barriers in areas where there is a higher risk of accidents, such as curves, intersections, bridges, and medians. By providing physical separation between opposing lanes or preventing vehicles from leaving the roadway, barriers help prevent head-on collisions and rollover accidents. Impact Testing and Standards: Road barriers undergo rigorous crash testing to ensure their effectiveness in different scenarios. Testing agencies and road safety organizations establish standards and guidelines for barrier performance, and these standards continue to evolve to improve safety outcomes. Continuous Maintenance and Upgrades: Regular maintenance and repairs of road barriers are crucial to ensure their effectiveness. Damaged or outdated barriers are identified and promptly replaced or upgraded to meet current safety standards. Roadway Design and Engineering: Along with road barriers, overall roadway design and engineering have improved to enhance safety. Factors such as clear signage, appropriate speed limits, improved sight distances, and better lane markings contribute to reducing accidents and making roads safer.
? What are the different types of road barriers?
Concrete Barriers
Jersey Barriers : Commonly used on highways to separate lanes of traffic and prevent vehicles from crossing into oncoming lanes. F-shape Barriers : Similar to Jersey barriers but with a different shape to reduce vehicle damage upon impact. Single Slope Barriers : Have a uniform slope and are used for the same purposes as Jersey barriers.
Steel Barriers
Guardrails : Flexible steel barriers often used on highways and roadsides to prevent vehicles from veering off the road. They absorb impact and redirect vehicles back onto the road. W-beam Barriers : A type of guardrail with a W-shaped cross-section that provides strength and flexibility. Thrie-beam Barriers : Similar to W-beam but with an additional corrugation, offering greater strength.
Cable Barriers
Wire Rope Safety Barriers : Consist of multiple steel cables mounted on posts. They are highly flexible and effective in absorbing energy from crashes, reducing the severity of impacts.
Plastic Barriers
Water-filled Barriers : Lightweight and easy to deploy. They can be filled with water or sand to provide stability and are often used in construction zones or temporary traffic control situations.
Crash Cushions
Attenuators : Designed to absorb the impact energy of a collision, reducing the severity of the crash for both the vehicle and its occupants. Used at the ends of barriers, around fixed objects, or in high-risk areas.
Temporary Barriers
Traffic Cones : Lightweight and easy to move, used for temporary lane closures and to direct traffic in construction zones. Barrels/Drums : Large plastic barrels filled with sand or water, used in construction zones and for temporary traffic control.
Noise Barriers
Sound Walls : Constructed along highways to reduce noise pollution in nearby residential areas. They are usually made of concrete, masonry, or other materials that block sound.
Pedestrian Barriers
Guardrails and Fencing : Installed to protect pedestrians from vehicular traffic and guide pedestrian movement, often used near schools, parks, and busy streets.
? What is the difference between guardrails and crash cushions?
Guardrails
Purpose : Primarily used to redirect vehicles away from dangerous areas like cliffs, slopes, or fixed objects. Design : Long, continuous steel or concrete barriers anchored to the ground. Function : Absorb some impact energy but mainly serve to deflect a vehicle back onto the roadway. Typical Locations : Roadside edges, highway medians, curves, and bridges. Result in Collision : May cause vehicle damage but prevent more severe outcomes like rollovers or going off-road.
Crash Cushions (a.k.a. Impact Attenuators)
Purpose : Designed to absorb impact energy and reduce crash severity when a vehicle hits a fixed object head-on. Design : Modular units (often plastic or metal) that crumple, collapse, or slide upon impact. Function : Dissipate energy gradually to minimize injury to vehicle occupants. Typical Locations : In front of toll booths, highway exits, bridge piers, and concrete barriers (end terminals). Result in Collision : Less damage to the vehicle and injury to occupants , especially in head-on crashes.
? What factors are considered when choosing the type of road barrier to use?
Traffic Volume and Speed
High-Volume, High-Speed Areas : Require more robust barriers like concrete Jersey barriers or steel guardrails to withstand higher impact forces. Low-Volume, Low-Speed Areas : May use lighter barriers such as water-filled barriers or cable barriers.
Road Geometry and Location
Curves and Slopes : Require flexible barriers like guardrails or cable barriers to accommodate the dynamic forces. Straight Sections : May use rigid barriers like concrete barriers. Bridge Decks and Overpasses : Often use specific barriers like bridge parapets designed for those conditions.
Type of Roadway
Highways and Freeways : Typically use strong, continuous barriers such as concrete barriers or steel guardrails to separate opposing traffic lanes and prevent crossover accidents. Urban Roads : Might use a combination of barriers, including pedestrian barriers and noise barriers.
Crash Severity and Impact Angle
High Impact Areas : Such as freeway medians, require durable barriers that can absorb or redirect high-impact collisions. Low Impact Areas : Such as urban streets, might use more flexible or temporary barriers.
Space Constraints
Limited Space : Narrow areas might necessitate compact barriers like single slope barriers or thin guardrails. Wide Medians : Allow for larger barriers and crash cushions.
Maintenance and Durability
Durability Needs : Areas with high exposure to harsh weather or frequent collisions require more durable barriers like concrete or steel. Maintenance Considerations : Some barriers are easier and cheaper to maintain. For example, cable barriers might need more frequent repairs but are easier to install.
Environmental Impact
Aesthetics : Urban and residential areas might favor more aesthetically pleasing barriers, like decorative concrete or landscaped barriers. Noise Reduction : Barriers in residential areas might need to include sound walls to reduce noise pollution.
Cost and Budget
Budget Constraints : Influence the choice between more expensive but durable barriers like concrete and less expensive, temporary barriers like plastic or water-filled barriers. Lifecycle Costs : Consider initial installation costs as well as long-term maintenance and replacement costs.
Safety Standards and Regulations
Local Regulations : Compliance with local, regional, and national safety standards and guidelines for barrier performance and installation. Crash Testing Standards : Barriers must meet specific crashworthiness criteria set by transportation authorities.
Specific Use Cases
Temporary Construction Zones : Require easily movable and reusable barriers like traffic cones, barrels, or water-filled barriers. Permanent Installations : Utilize more permanent and robust barriers that can withstand long-term use and exposure.
Surrounding Infrastructure
Proximity to Pedestrian Areas : Requires barriers that also protect pedestrians, such as pedestrian guardrails or fencing. Adjacent Properties : Consider the impact on nearby buildings and structures, particularly in urban settings.
? How do road barriers improve safety?
Preventing Vehicle Crossovers
Median Barriers : These barriers, such as concrete Jersey barriers or cable barriers, prevent vehicles from crossing into oncoming traffic, reducing head-on collisions, which are often severe.
Redirecting Vehicles
Guardrails and Steel Barriers : These barriers absorb the impact of a collision and redirect the vehicle back onto the roadway, preventing it from veering off the road or into dangerous areas.
Absorbing Impact
Crash Cushions (Attenuators) : Placed at the ends of barriers or in front of fixed objects, crash cushions absorb and dissipate the energy from a collision, reducing the severity of the impact and minimizing injuries to vehicle occupants.
Protecting Fixed Objects
Barriers Around Poles and Structures : Barriers placed around fixed objects like utility poles, bridge piers, and sign supports protect vehicles from crashing into these structures, reducing the likelihood of severe accidents.
Channeling Traffic
Barriers in Construction Zones : Temporary barriers such as water-filled barriers or traffic cones guide and channel traffic through construction zones, protecting workers and directing vehicles safely through potentially hazardous areas.
Protecting Pedestrians
Pedestrian Barriers : Guardrails and fencing near sidewalks, parks, and schools protect pedestrians from vehicular traffic, reducing the risk of pedestrian-vehicle collisions.
Reducing Run-Off-Road Crashes
Roadside Barriers : Barriers placed along the edge of roads, especially on curves, steep embankments, or near water bodies, prevent vehicles from running off the road and crashing into hazardous areas.
Minimizing Secondary Collisions
Energy-Absorbing Barriers : Barriers that absorb impact can prevent secondary collisions by stopping or slowing down the vehicle in a controlled manner, reducing the risk of further accidents.
Providing Visual Guidance
Reflective Barriers : Barriers with reflective surfaces or markings improve visibility, especially at night or in adverse weather conditions, helping drivers stay on the correct path and avoid collisions.
Noise Reduction
Sound Barriers : While primarily designed to reduce noise pollution, sound barriers also act as physical barriers, preventing vehicles from entering residential areas in case of an accident.
Maintaining Traffic Flow
Zipper Barriers : Movable barriers used to manage lane usage during peak traffic times or emergencies help maintain smooth traffic flow, reducing congestion and the likelihood of accidents.
? How are road barriers tested for effectiveness?
Crash Testing
Full-Scale Crash Tests : Conducted with actual vehicles crashing into barriers at specific speeds and angles. These tests evaluate the barrier's strength, deformation, and ability to redirect or absorb the impact. Vehicle Types and Sizes : Different vehicles, including cars, trucks, and buses, are used to test how the barrier performs under various conditions. Impact Angles and Speeds : Barriers are tested at different impact angles (e.g., head-on, side, and oblique) and speeds to ensure they can handle diverse collision scenarios.
Dynamic Testing
High-Speed Impacts : Barriers are subjected to high-speed impacts to determine their ability to absorb energy and prevent vehicle penetration. Energy Absorption : The tests measure how well the barrier dissipates kinetic energy during a collision, reducing the force transmitted to the vehicle occupants.
Structural Testing
Material Properties : Testing the materials used in the barrier (e.g., concrete, steel, plastic) for their strength, flexibility, and resistance to environmental factors like corrosion and weathering. Design Evaluation : Analyzing the barrier's design, including its shape, connections, and anchoring systems, to ensure they contribute to overall effectiveness.
Certification and Standards Compliance
Standards Organizations : Agencies like the National Cooperative Highway Research Program (NCHRP) in the U.S. and European Committee for Standardization (CEN) in Europe provide guidelines and standards for barrier testing. Manual for Assessing Safety Hardware (MASH) : This standard provides guidelines for testing and evaluating the performance of roadside safety devices, including barriers.
Computer Simulations
Finite Element Analysis (FEA) : Simulates the behavior of barriers during impacts to predict structural response, deformation, and energy absorption. Scenario Analysis : Running multiple scenarios to identify potential weaknesses and improve barrier designs before physical testing.
Field Testing and Monitoring
Pilot Installations : Installing barriers in selected locations and monitoring their performance in real traffic conditions. Data Collection : Gathering data on accidents involving the barriers, including impact severity, vehicle damage, and injury reports, to evaluate real-world effectiveness.
Ongoing Evaluation and Improvement
Post-Crash Analysis : Analyzing data from actual crashes involving the barriers to identify areas for improvement. Research and Development : Ongoing R&D efforts to develop new materials, designs, and technologies that enhance barrier performance.
? Are road barriers effective in preventing accidents?
Preventing Vehicle Crossovers
Median Barriers : Prevent vehicles from crossing into oncoming traffic lanes, significantly reducing the risk of head-on collisions, which are often fatal.
Reducing Run-Off-Road Crashes
Roadside Barriers : Prevent vehicles from leaving the roadway, which can lead to collisions with fixed objects like trees, poles, or rolling down embankments.
Absorbing and Redirecting Impact
Guardrails and Steel Barriers : Absorb impact energy and redirect vehicles back onto the road, preventing them from veering into more dangerous areas.
Minimizing Collision Severity
Crash Cushions : Placed at critical points like highway exits and construction zones, crash cushions absorb the energy of a collision, reducing the force on vehicle occupants and minimizing injuries.
Protecting Pedestrians and Cyclists
Pedestrian Barriers : Installed in areas with heavy foot traffic, these barriers prevent vehicles from encroaching onto sidewalks and pedestrian zones, protecting vulnerable road users.
Channeling Traffic Safely
Construction Zone Barriers : Guide traffic safely through construction areas, reducing the risk of accidents caused by sudden lane changes or unclear road layouts.
Improving Driver Behavior
Visual Cues : Barriers provide clear visual cues for lane boundaries and road edges, helping drivers maintain proper lane discipline and avoid unintended lane departures.
Preventing Secondary Collisions
Energy-Absorbing Barriers : By reducing the speed and impact of the initial collision, these barriers decrease the likelihood of secondary crashes involving other vehicles.
Evidence of Effectiveness
Statistical Studies : Numerous studies have shown that the installation of road barriers correlates with a significant reduction in both the number and severity of accidents. For example, the Federal Highway Administration (FHWA) has reported that median barriers can reduce cross-median crash fatalities by over 90%. Real-World Examples : Many regions have seen dramatic decreases in accident rates following the installation of appropriate barriers. For instance, the introduction of cable barriers in medians has led to fewer crossover accidents in several states in the U.S.
Factors Contributing to Effectiveness
Proper Installation and Maintenance : For barriers to be effective, they must be correctly installed and regularly maintained. Poorly maintained barriers can become hazards themselves. Appropriate Selection : The effectiveness depends on selecting the right type of barrier for the specific road conditions and traffic patterns. Compliance with Standards : Barriers designed and tested to meet stringent safety standards ensure optimal performance in real-world conditions.
